BIG AIR KIT
STEALTH
Road/Stratoliner & Raider

Part Number:

BA-2021-00

Parts Unlimited P/N:

1010-0759

Description:

Increases horsepower
Increases torque
Quickens acceleration and attains speed more rapidly
Stronger-pulling power rockets you down the road without hesitation
Improves cooling

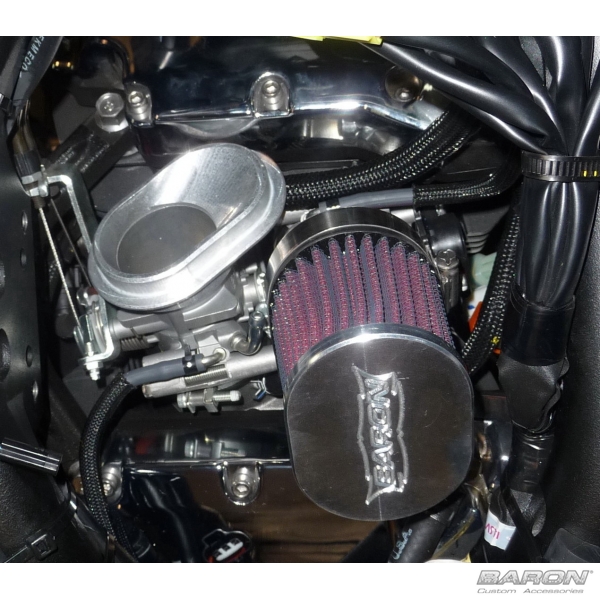

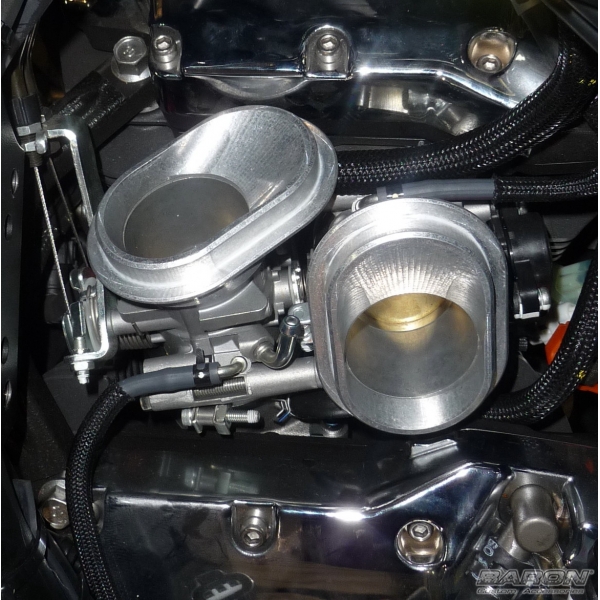

Machined High Flow Velocity Funnel Base Mounts improve air flow to the throttle bodies
Integrated Aluminum Power Cones reduce turbulence and increase air load velocity

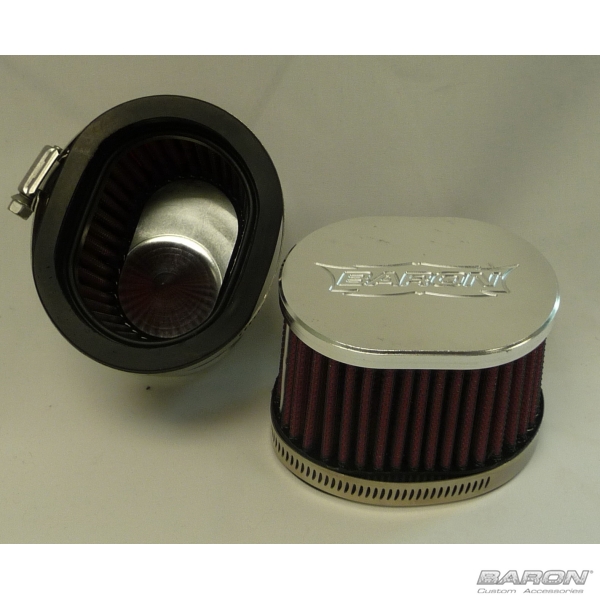

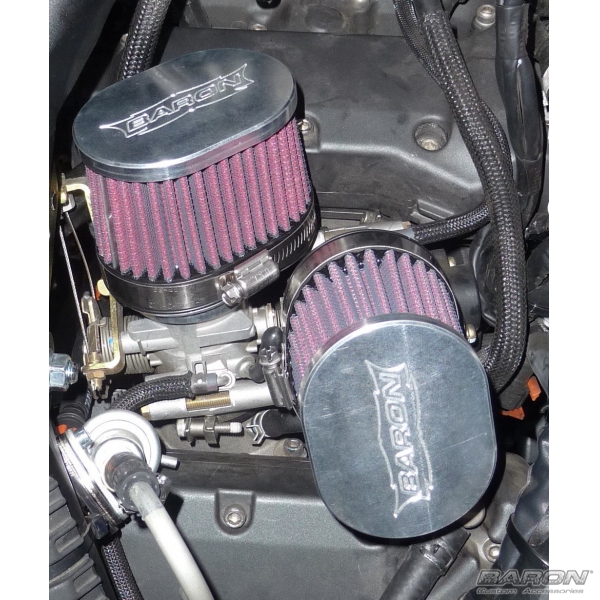

Proprietary High Flow Airaid reusable filters for long life
Provides a deeper, healthier roar

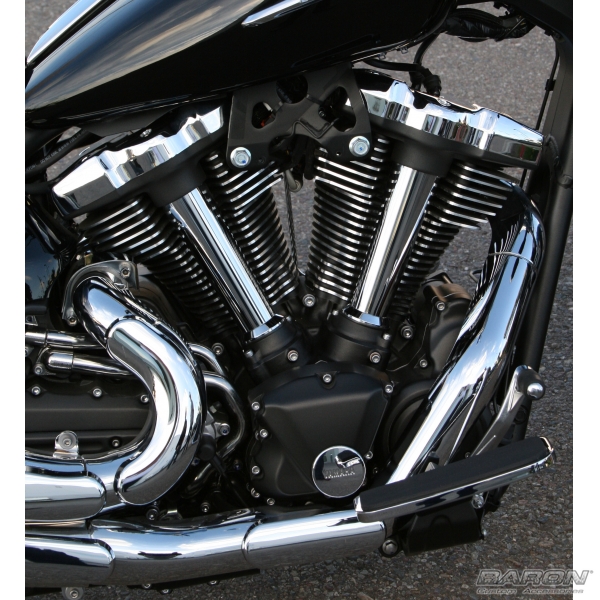

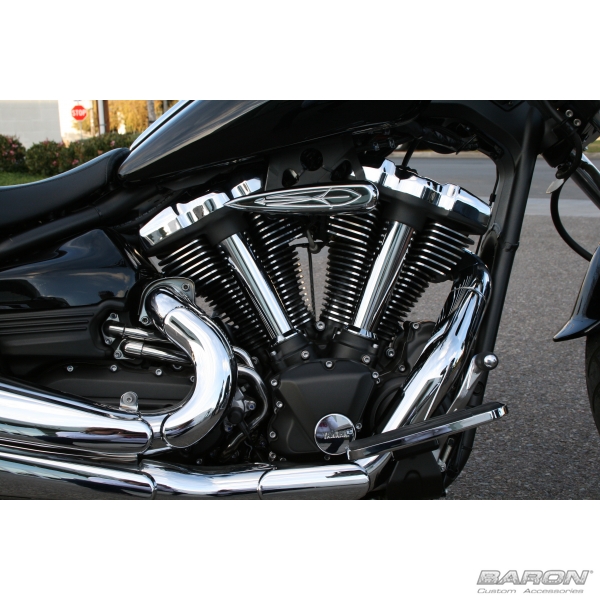

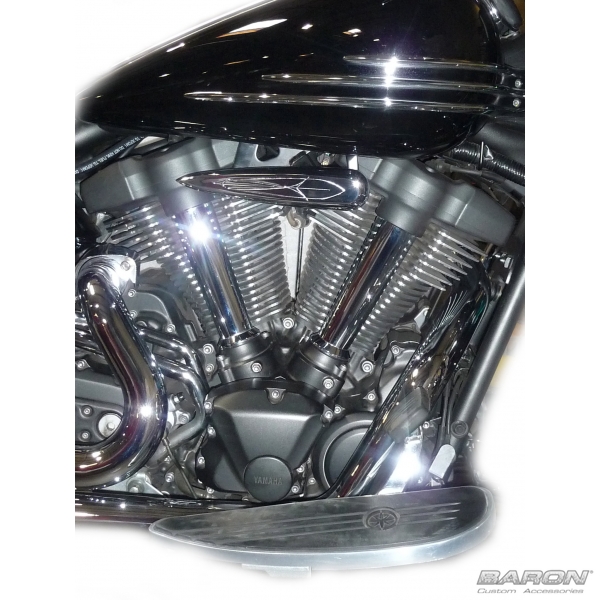

System cleanly integrates under the fuel tank and replaces bulky stock air box assembly

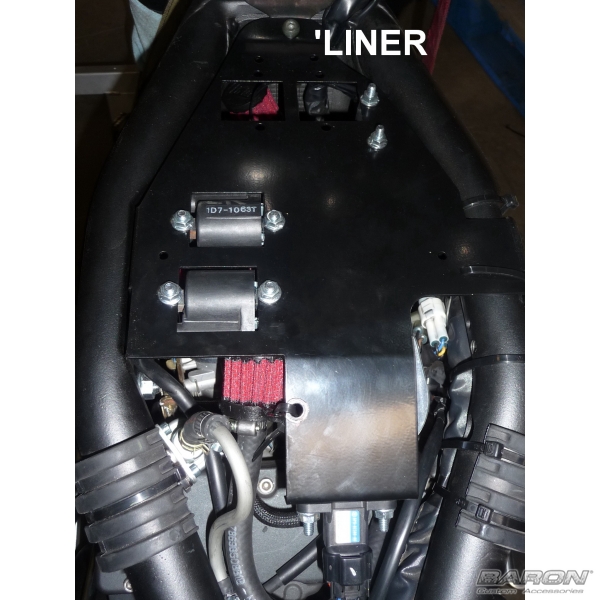

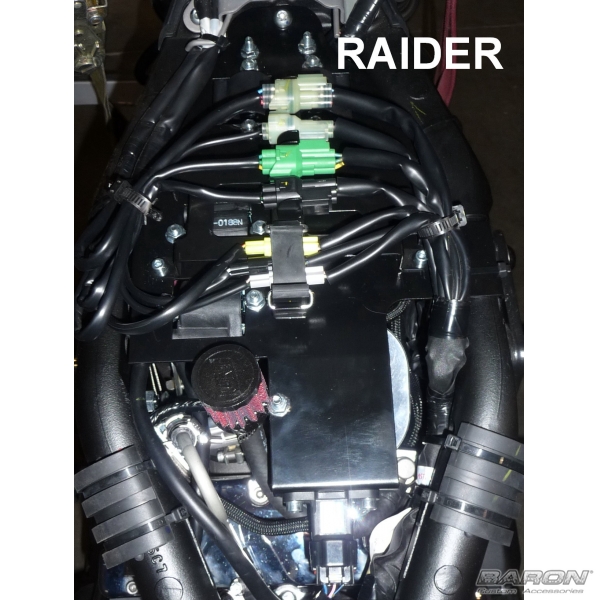

Includes unique relocation mount/hardware to reposition coils, sensors and vacuum pumps
Provides multiple options for cleaning up clutter on the sides of the engine
Includes detailed easy-to-follow instructions^* for a do-it-yourself installation

*Instructions include detailed photos and are attached below for your viewing. Allow for up to 1 minute to load .pdf file.

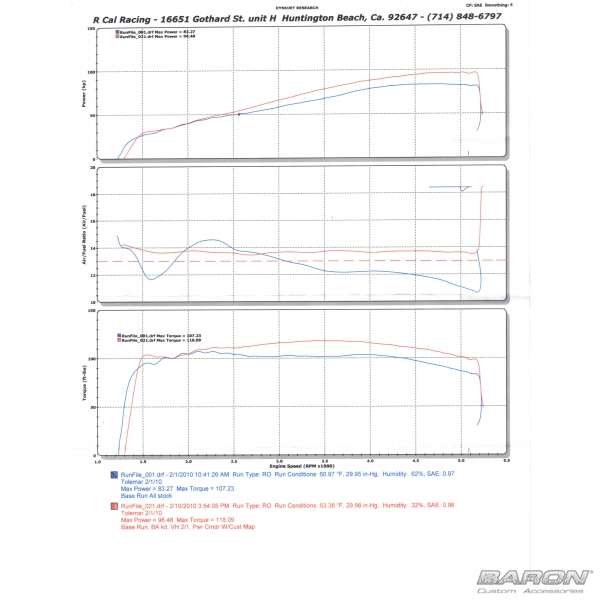

DYNO RUN OF A 4th GEAR ROLL-ON

Peak Horsepower Comparative by RPM
	RPM	HP	Ft/lbs Torque	HP Gain	% Gain	Torque Gain	% Gain	Acceleration Time
All Stock	4700	83.25	90.99					5.35
Modified	4700	95.68	106.94	+12.43 HP	14.93%	15.95	17.53%	4.77
Modified	5000	96.13	100.97	+12.88 HP	15.47%	9.98	10.97%	5.18

Peak Torque Comparative by RPM
	RPM	HP	Ft/lbs Torque	HP Gain	% Gain	Torque Gain	% Gain
All Stock	2100	42.85	107.13
Modified	2100	43.47	108.70	+0.62 HP	1.45%	1.57	1.47%
Modified	3400	76.41	118.64	+33.56 HP	78.32%	11.51	10.74%

Idle to 5000 Acceleration Time Comparative
	RPM	HP	Ft/lbs Torque	HP Gain	% Gain	Acceleration Time
All Stock	5000	82.16	86.30			5.84
Modified	5000	96.13	100.97	+13.97 HP	11.3%	5.18

Performance numbers posted above are for reference and illustration only they are not a guarantee. Gains will vary based on bike, conditions, equipment and tuning.

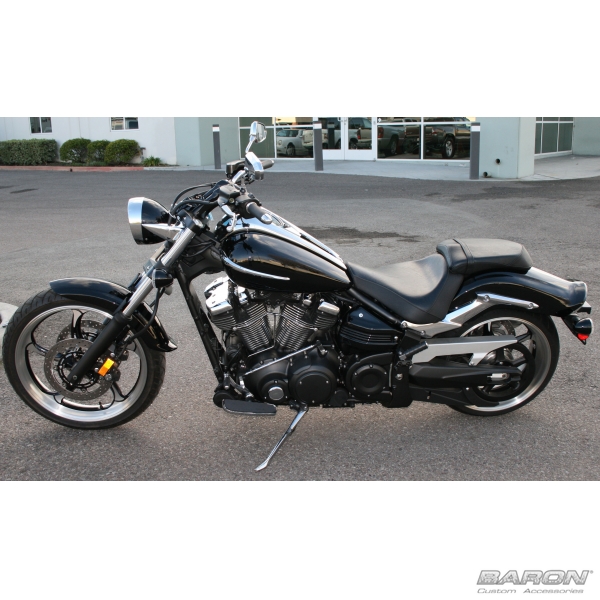

Bike Fitment:

Yamaha Raider (08-17)
Yamaha Roadliner (06-15)
Yamaha Stratoliner (06-15)

Installation Guides:

BA-2021-00 INSTALLATION GUIDE
